GAE EMG 50 Digital Energy Power Meter




KEY BENEFITS

  • LCD Display
  • Adjustable CT and PT
  • Harmonic measurement up to 51st
  • Programmable digital inputs and outputs
  • Programmable alarm output
  • 4 digit password entry
  • Harmonics to the 51st order
  • Total Harmonic Distortion measurement
  • Phasor Diagram and Waveform Capture
  • RS485 communication
  • Real time clock
  • Multi tariff meters
  • Waveforms Phasor diagram
  • Maximum, mininum, average and energy values for hourly, daily and monthly for each phase
  • Data Logging with time stamp up to 1 MB memory and alarm recording

APPLICATIONS

  • Dual Source Energy Measurement : recording and displaying the consumption of the energy from two different sources; network and generator.
  • Multi Tariff Energy Measurement : user can use these sub-tariffs in order to measure energy consumption for different shifts in a facility.
  • Signal Analyzing : advanced monitoring of current and voltage waveforms, monitoring signal disturbances, detailed analyze of phase relationships.
  • Demand Management : measuring demand values for active power with date and time helps identifying time periods when energy use is very high so that unnecessary and unexpected costs can be detected andreduced.

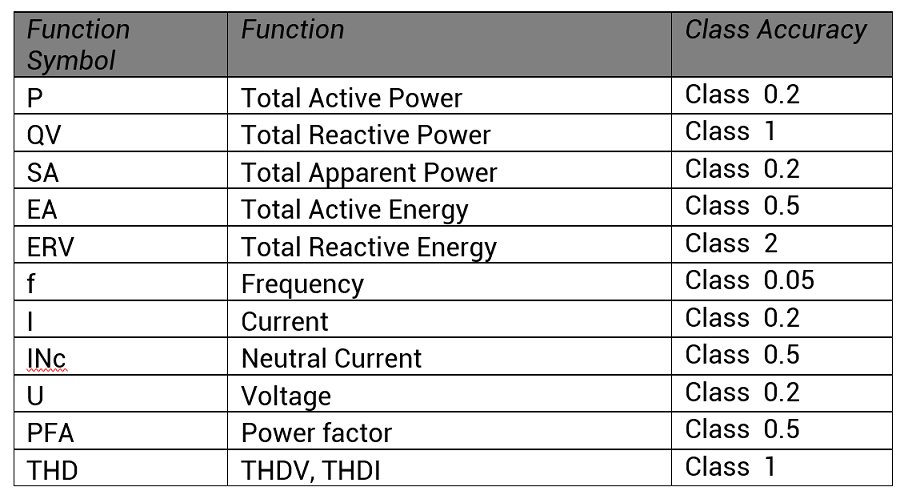

SPECIFICATION

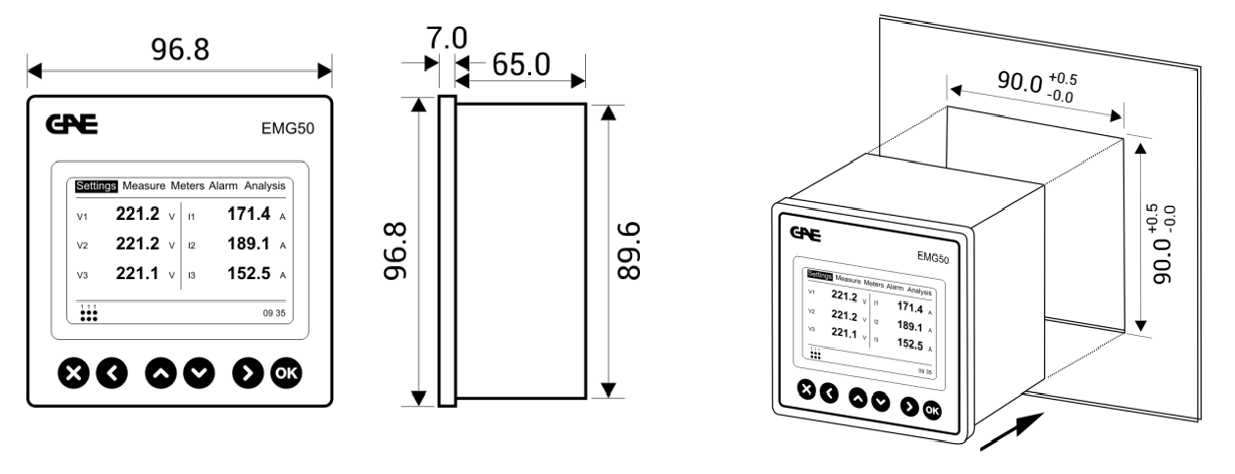

DIMENSION
