GAE EMG 10 Digital Power Meter




KEY BENEFITS

  • Bright Seven Segment Display
  • Adjustable CT and PT
  • 4 digit password entry
  • Absence of Voltage and Current can be detected and indicates each alarm by blinking LED's on its front panel.
  • Total Harmonic Distortion (%) measurement
  • RS485 Communication

APPLICATIONS

  • Instantaneous Measurement : main consumers can be identified by measuring the energy consumption of the various sub-assemblies in your buildings.
  • Remote Monitoring : all measured parameters are transmitted to a PC through RS485 so that keep customers be informed of system performance for 24 hours per day.
  • Equipment Maintenance : monitoring elapsed hours for equipment, recording actual running hours, tracking running time for equipment service with Run hour, On hour and Power interruption counter features.

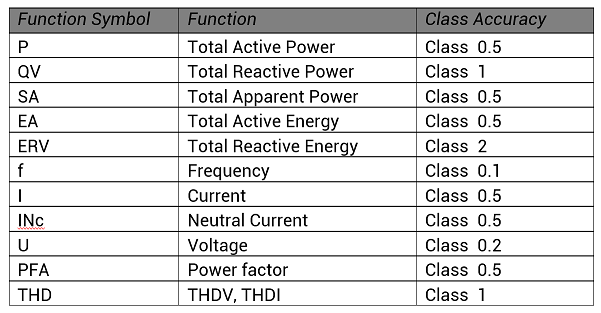

SPECIFICATION

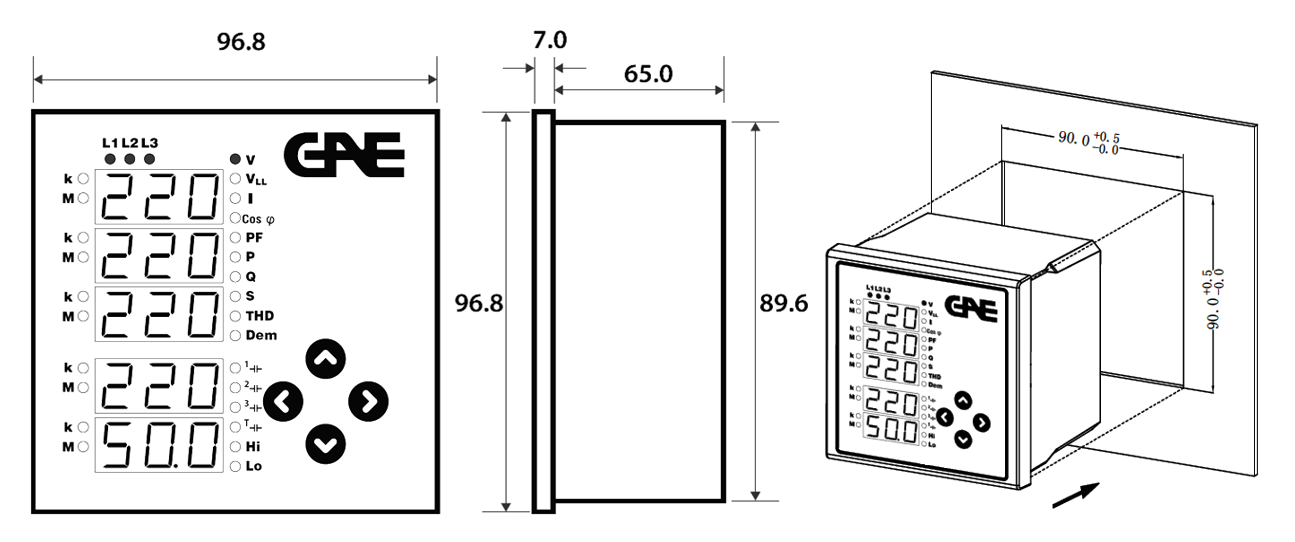

DIMENSION
